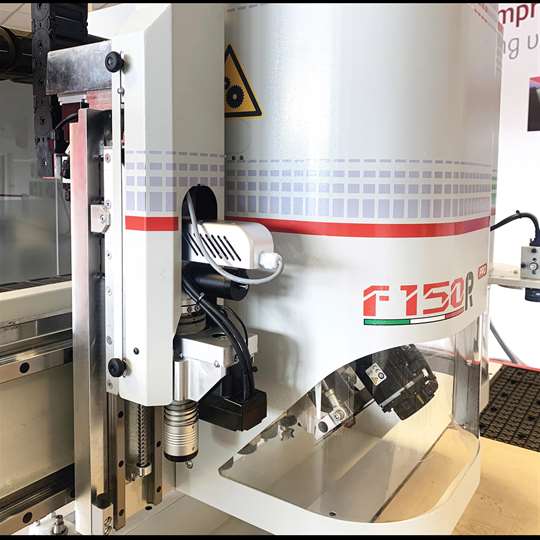

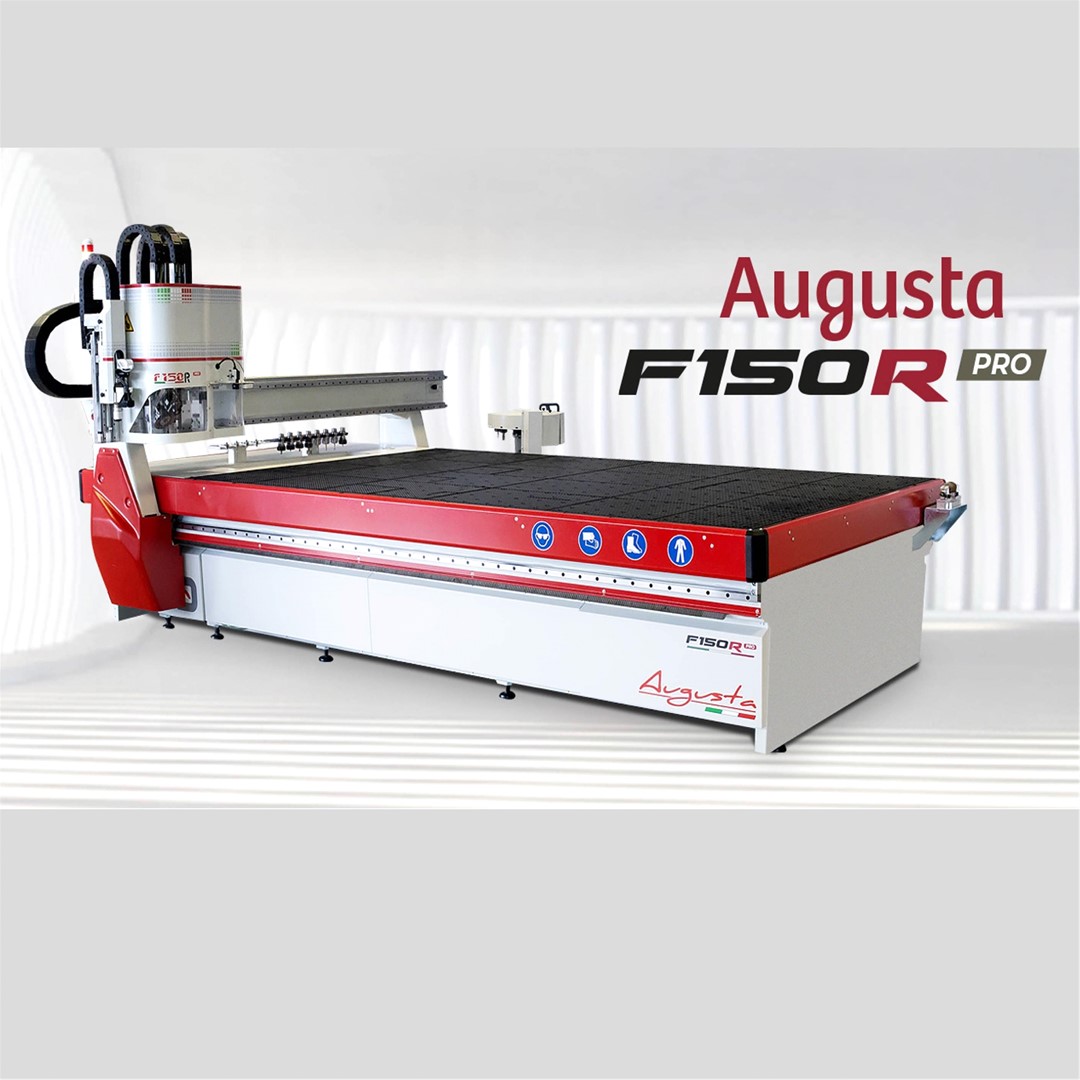

Augusta F150R PRO - F150R-PRO
Cutting plotters to control.
The load-bearing structure of the plotter has a monolithic base in thick steel, strongly ribbed and extremely rigid.
All the parts have a very high precision that guarantees stability and quality over time.
The base is equipped with a strong stability characterized by adjustable feet with a maximum availability of 24 feet.
Through this machine it is possible to process the following materials:
- Skin
- Gum
- Paper and Cardboard
- PVC
- Polyurethane foam
- Alucobond
- Gaskets
- PTFE
- Polycarbonate
- Wood
- Feather
- Dibond
- Plexiglass
- Aluminium
- Solid surfaces
- 3D
- Forex
| Pendulum working | X 1600- Y 2050- Z 150 mm X 3050- Y 2050- Z 150 mm *Pendulum double working area |
| Z axes independent | Up to 4 independent units |
| Power supply | Tree-phase 380/400 50 Hz |
| Tool change | Up to 13 positions + 12 positions (configurable) |
| Working area | X 2050 – Y 1600 – Z 150 mm |
| X 3050 – Y 2050 – Z 150 mm | |
| X 4500- Y 2050- Z 150 mm | |
| X 7600- Y 2050- Z 150 mm | |
| Speed PRO | X 90- Y 90- Z 30 mm |
| Speed AREA | X 90- Y 90- Z 30 mm |
